Meta-Aramide (m-Aramide)

  • Media Type: Meta-Aramide
  • Material: 100% Meta-Aramide (commonly known as Nomex®)
  • Weight Range (GSM): 450–550 g/m²
  • Operating Temperature: Continuous: 200°C | Peak: 220°C
  • Resistance:
    • Hydrolysis: Fair
    • Acids: Good
    • Alkalis: Good
  • Typical Applications: Asphalt mixing plants, cement kilns (clinker coolers), smelting, metal foundries, and chemical processing.
Description & Usage

Meta-Aramide is a high-performance fiber designed for extreme heat. It provides an excellent ratio of thermal stability to cost, making it the industry standard for asphalt and metal processing. It handles high-temperature pulses well and offers good dimensional stability. However, users must ensure the gas stream remains above the dew point, as the fiber is susceptible to hydrolysis when exposed to high moisture at elevated temperatures.

Types

HIGH TEMPERATURE RESISTANT - 200 C)

HIGH TEMPERATURE RESISTANT - 200 C)

  • ⁠550 GSM
  • SPECIAL SURFACE FINISH
  • APPLICATION : FTP BAG FILTER

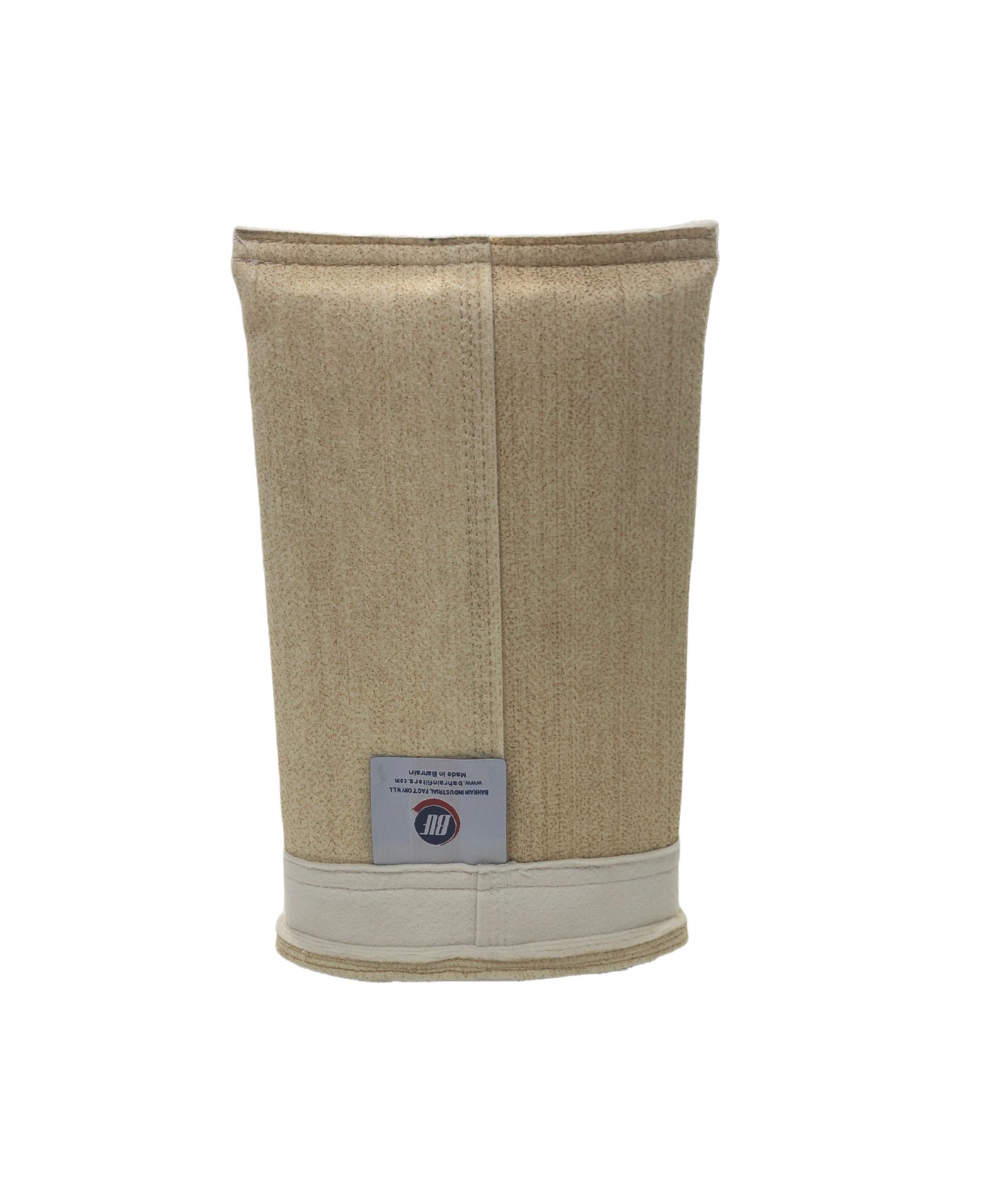

(HIGH TEMPERATURE RESISTANT - 200 C)

(HIGH TEMPERATURE RESISTANT - 200 C)

  • 550 GSM
  • SPECIAL SURFACE FINISH e-PTFE LAMINATION

Gallery
