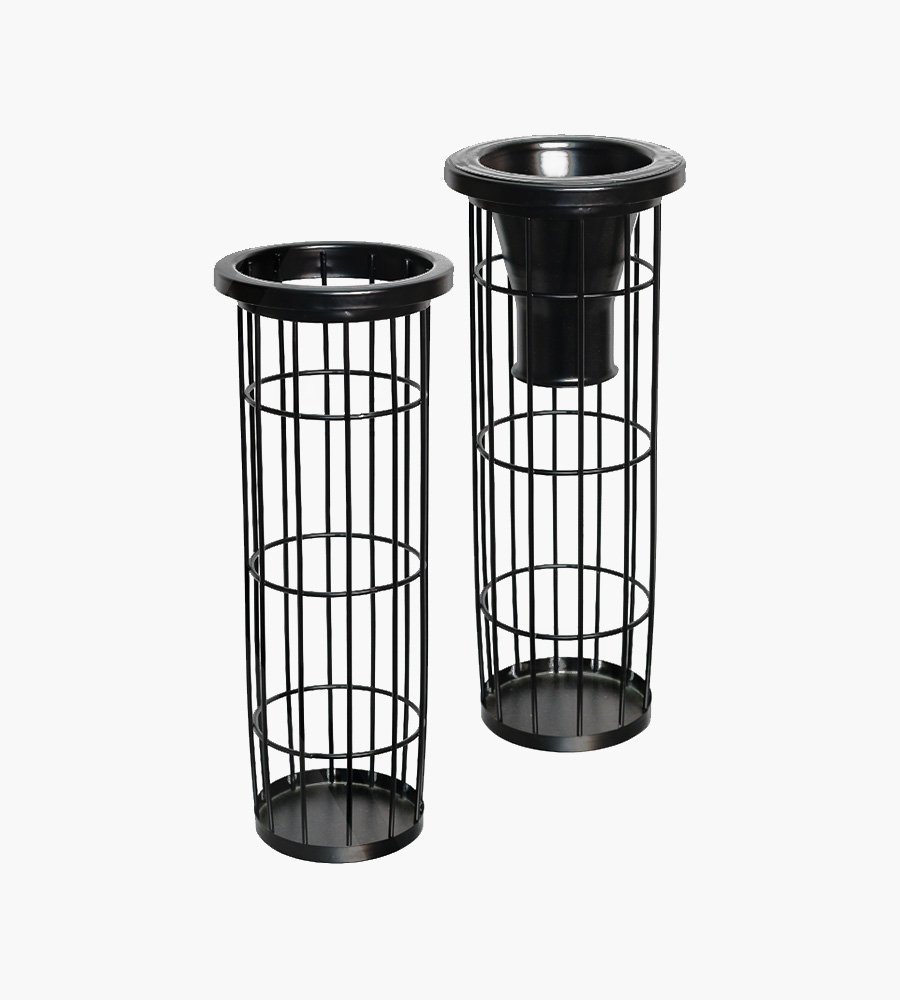

Epoxy Coated

Media Type: Filter Support Cage
Material: Carbon Steel with Epoxy Powder Coating
Weight Range (Wire Diameter): 3.0mm – 4.0mm (plus coating thickness)
Operating Temperature: Continuous: 120°C | Peak: 150°C (Coating specific)
Resistance:
- Hydrolysis: Excellent
- Acids: Good
- Alkalis: Good
Typical Applications: Chemical processing, food grade applications, and environments with moderate chemical vapors.

Description & Usage

These cages are coated with a hard, smooth epoxy resin that provides a barrier against chemical attack and moisture. The smooth finish also helps reduce mechanical wear on the filter bag during the pulse-jet cleaning cycle. They are a mid-range solution for protecting the cage from corrosion without the high cost of stainless steel.
